What is the Papa Rock Screen designed for?

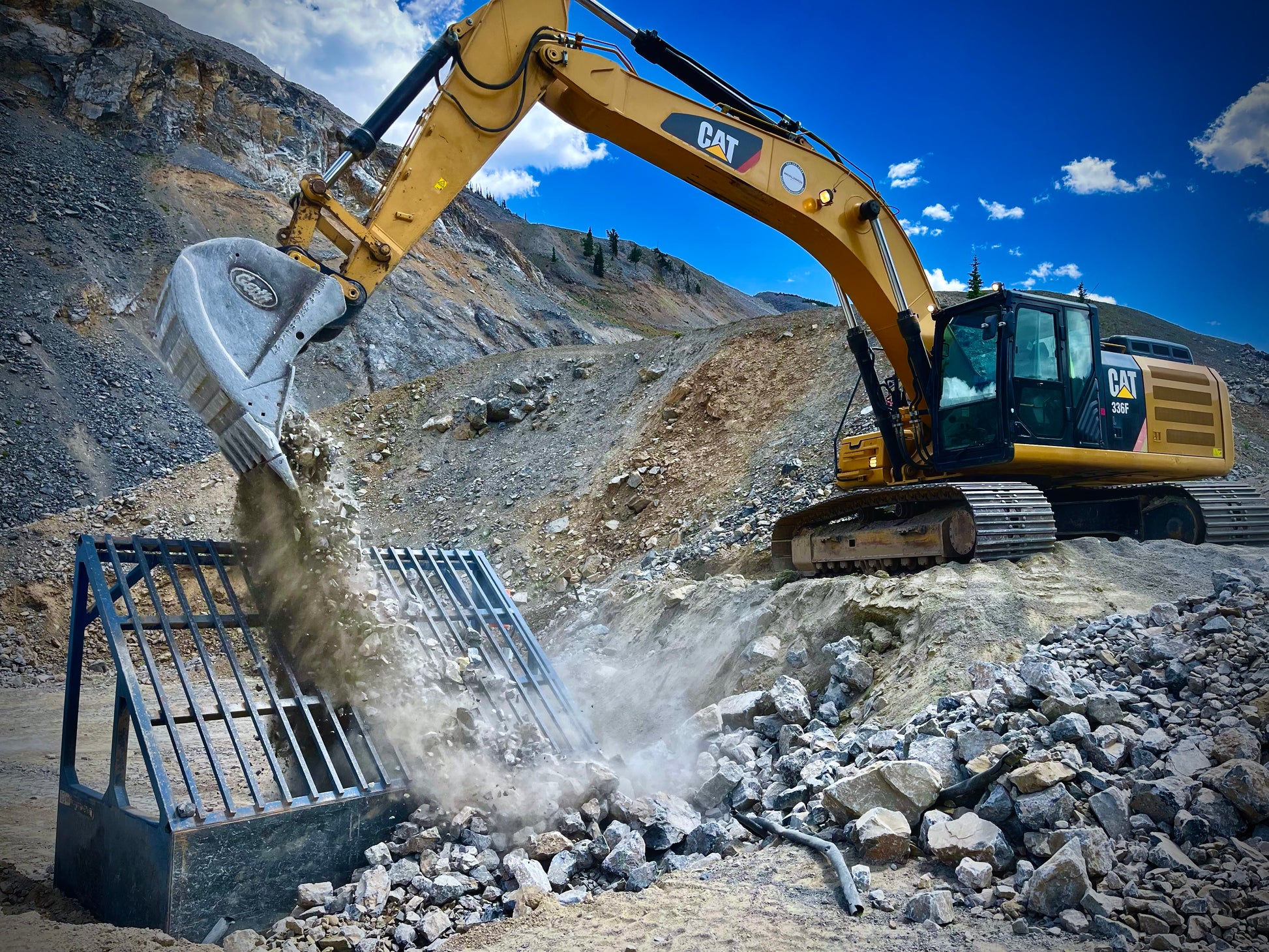

The Papa Rock Screen is a heavy-duty grizzly rock screen built for serious applications such as screening large rocks, scrap metal, recycled concrete, gold mining, aggregate processing, and soil cleaning. It's ideal for heavy civil contractors, miners, aggregate producers, farmers, and municipalities. With its 6.8 cubic yard capacity and robust steel construction, it separates debris from soil efficiently, allowing you to reuse on-site materials and reduce waste.
What are the key features of the Papa Rock Screen?
-
Heavy-Duty Construction: Solid steel rails for impact resistance, gusseted frame, double header, and double cross rails for maximum strength.
-
Customizable Options: Screen spacing available in 3", 4", 5", or 6" intervals; color options in blue, red, or orange.
-
Removable Screen System: Optional accessory for precise screening down to 1/4" using square wire crusher screen, interchangeable without tools.
-

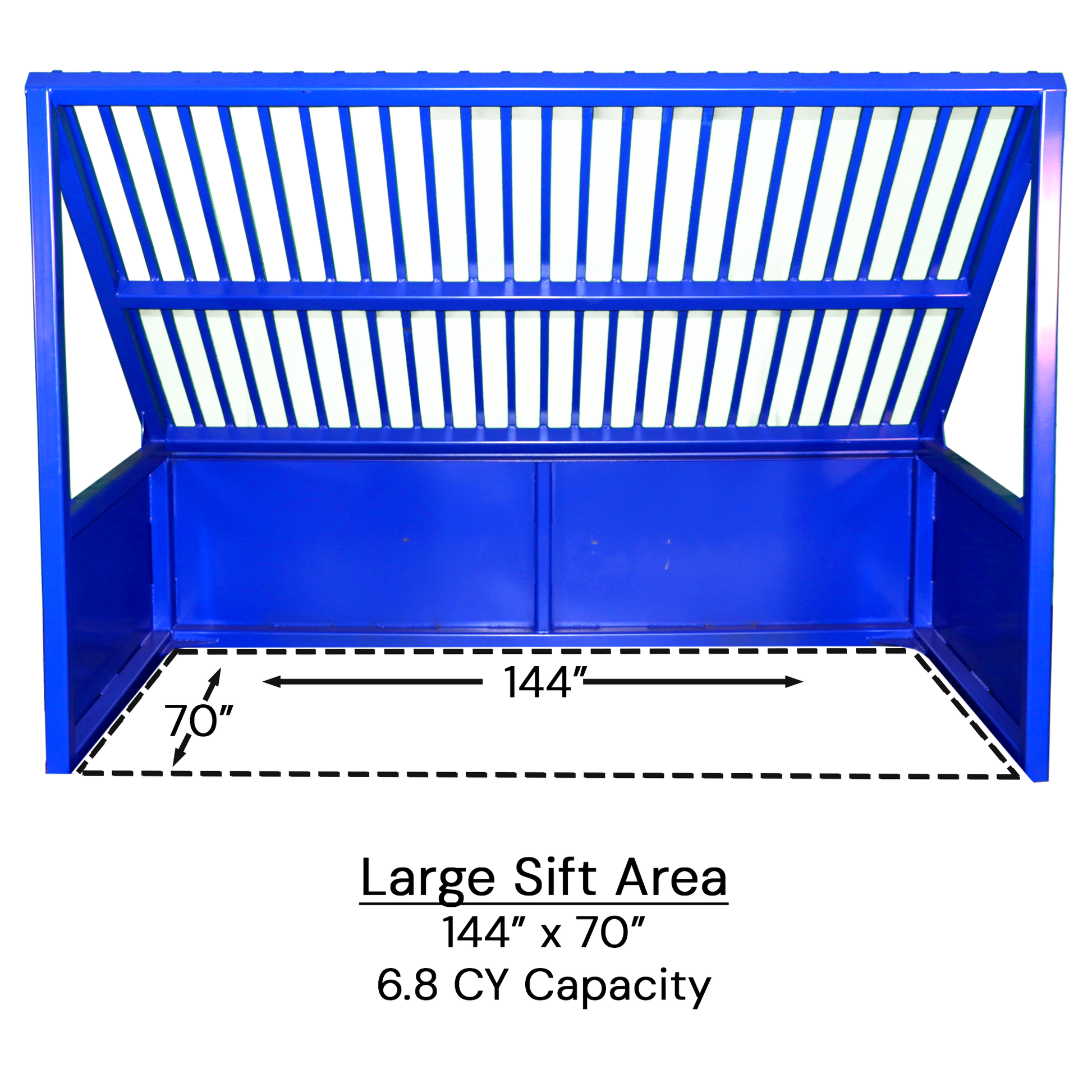

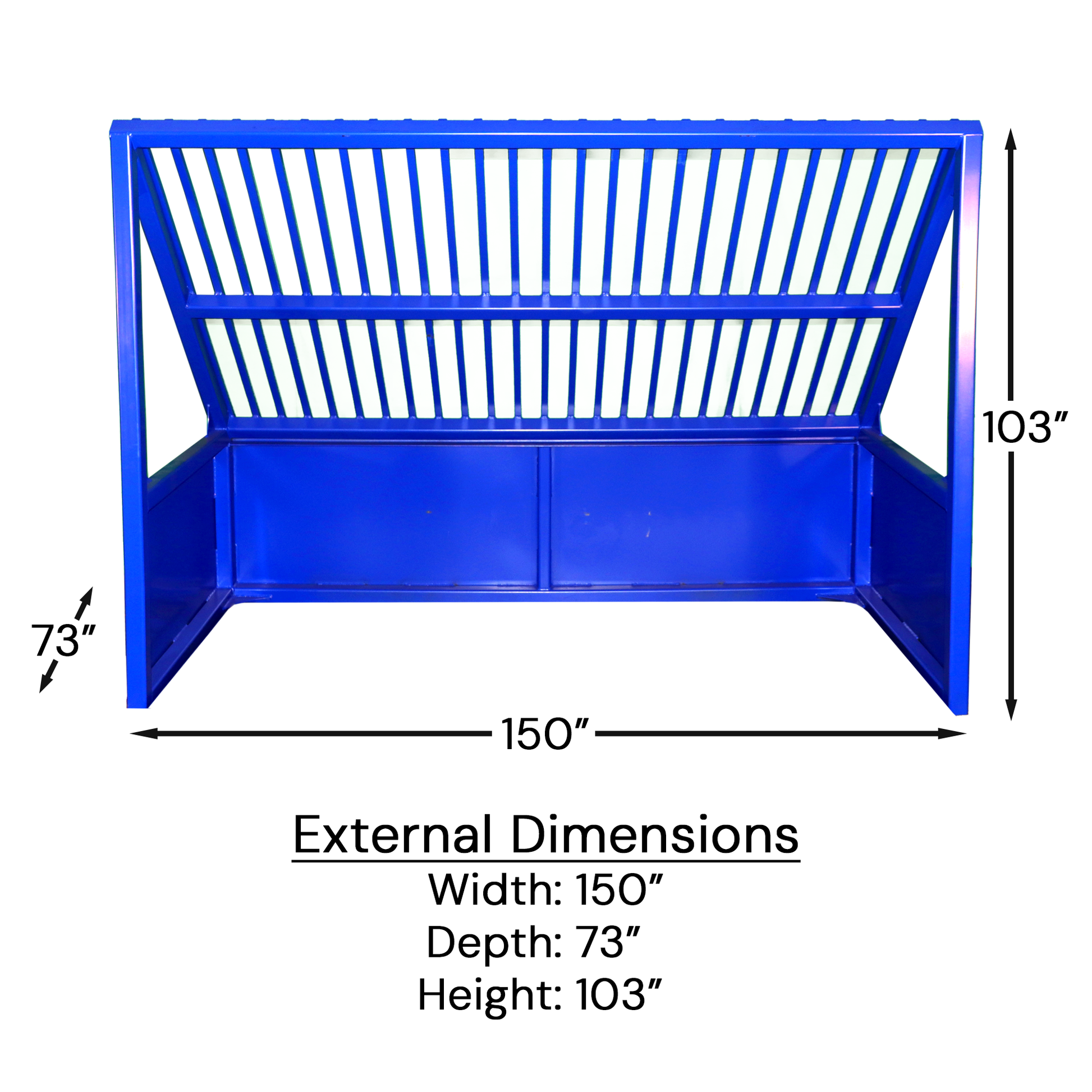

Compatibility: Designed for full-size loaders with bucket widths up to 142". Internal width: 144"; weight: 3300 lbs.
-
Versatility: Can screen rocks, debris, manure, firewood, beach sand, and more. Add a vibrator for enhanced efficiency in sticky materials.
-
Ease of Use: No assembly required; pick up from middle cross rails using your loader bucket. Dump material from the back for safety.
What size equipment do I need to use the Papa Rock Screen?
You'll need a full-size loader (e.g., wheel loader or large skid steer) capable of handling at least 3300 lbs. The internal width is 144", so your bucket should be no wider than 142" to fit properly. If your bucket is wider, contact us for custom modifications. For moving, simply hook the loader bucket onto a middle cross rail and lift—it's designed for easy repositioning on job sites.
Does the Papa Rock Screen come with a removable screen, or is that extra?
The base Papa Rock Screen does not include a removable screen; it's an optional accessory priced at $2,750.00. Removable screens are available in sizes from 1/4" to 4" and match your grizzly's color. They allow for more precise screening and can be swapped without leaving your equipment's seat—no bolts or tools needed.
Can I add a vibrator to the Papa Rock Screen?
Yes, vibrator installation is available as an accessory for $3,000.00, with options from Martin or Vibco brands. A vibrator improves screening efficiency, especially for wet, sticky, or fine materials by shaking debris through the rails faster. It's particularly useful in mining or aggregate operations.
Is the Papa Rock Screen suitable for wet or sticky soil conditions?
Yes, it's effective in wet or sticky conditions, but performance improves with the optional vibrator accessory, which helps prevent clogging. The sloped design allows material to flow down naturally, and the solid steel rails resist buildup. For very clay-heavy soils, we recommend testing a smaller screen size or adding the removable screen for better separation.
What is the maximum rock or material size the Papa can handle?

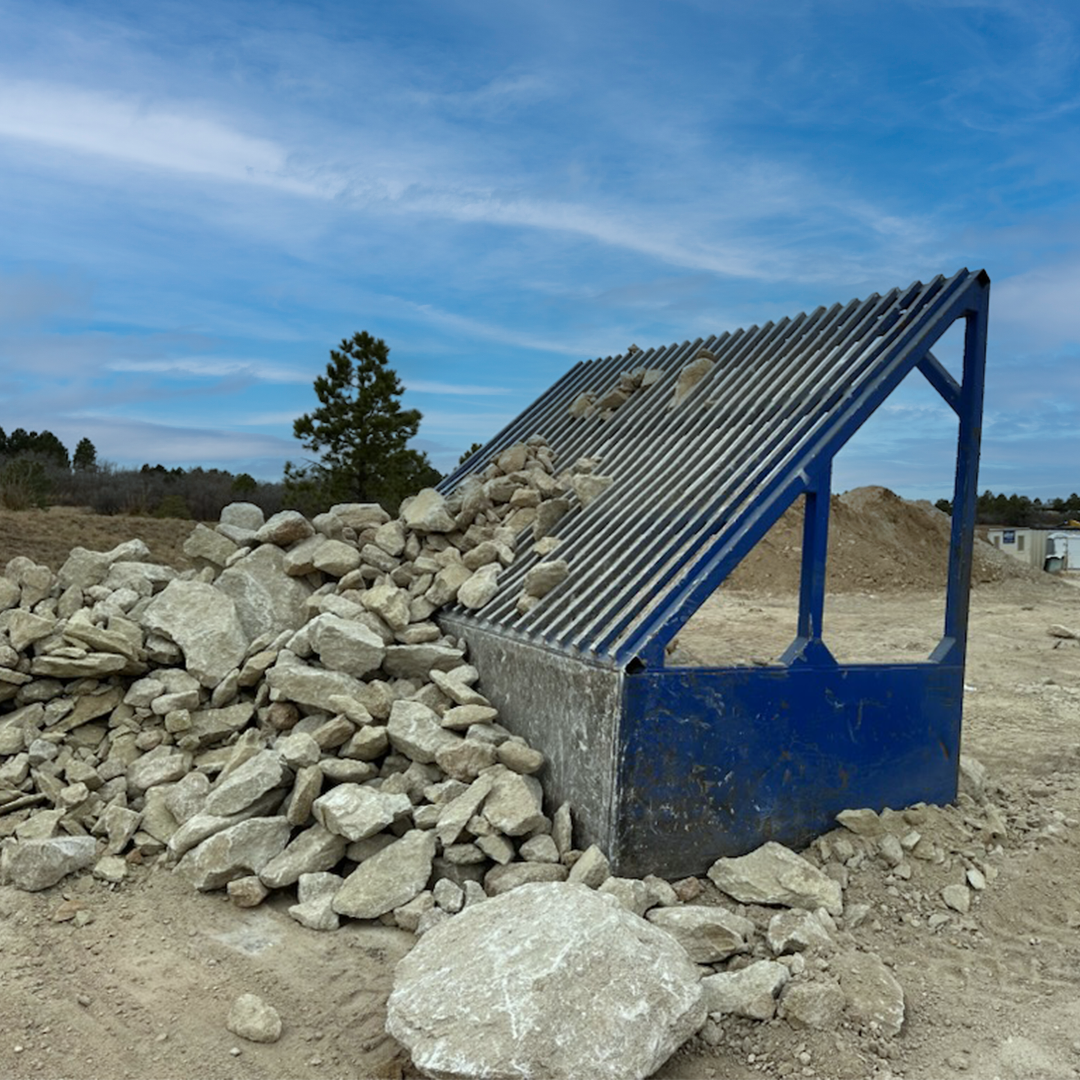

The Papa is built to handle large rocks up to 2-3 feet in diameter without damage, based on customer feedback from running thousands of yards of coarse material. The heavy-duty rails absorb initial impacts, but avoid dropping extremely oversized boulders directly onto the rails to prevent bending. For mining or demolition, it's proven durable with rocks, scrap metal, and concrete chunks.
How durable is the Papa Rock Screen for daily use in mining or construction?
Extremely durable—it's constructed with a gusseted steel frame, double headers, and cross rails to withstand abuse. Customers report running over 5,000 yards of material without issues. It's backed by our standard warranty (details at www.bearironworks.net/pages/warranty), covering defects. With proper use (e.g., dumping from the back), it can last for years in demanding environments like mines or job sites.
How do I use the Papa Rock Screen?
-
Positioning: Place it near your source material with access to both front (for debris removal) and back (for screened soil collection).
-
Moving: Use your loader bucket to grab a middle cross rail from the inside, curl outward until secure, then lift and relocate.
-
Screening: Approach from the back, raise your bucket above the top, and slowly dump material onto the rails. Fine material falls through; oversize rolls to the front. Repeat until you have a bucket of screened soil. For detailed instructions, including with removable screens, refer to our user guide or video tutorials on our website.
Can the Papa Rock Screen be customized further?
Yes! If you need larger sizes, different spacing, lifting eyes, fork pockets, or other modifications (e.g., for excavators or forklifts), contact us. We have drawings for oversized versions and a background in mining to tailor solutions. Custom orders are made to order with quick turnaround.
What if I need to screen finer materials like topsoil?
Add the optional removable screen for precision down to 1/4". Unlike competitors limited to 1", our square wire screens provide true-to-size material. It's versatile for topsoil, sand, or even cleaning buried debris from beaches.
Is the Papa Rock Screen portable?

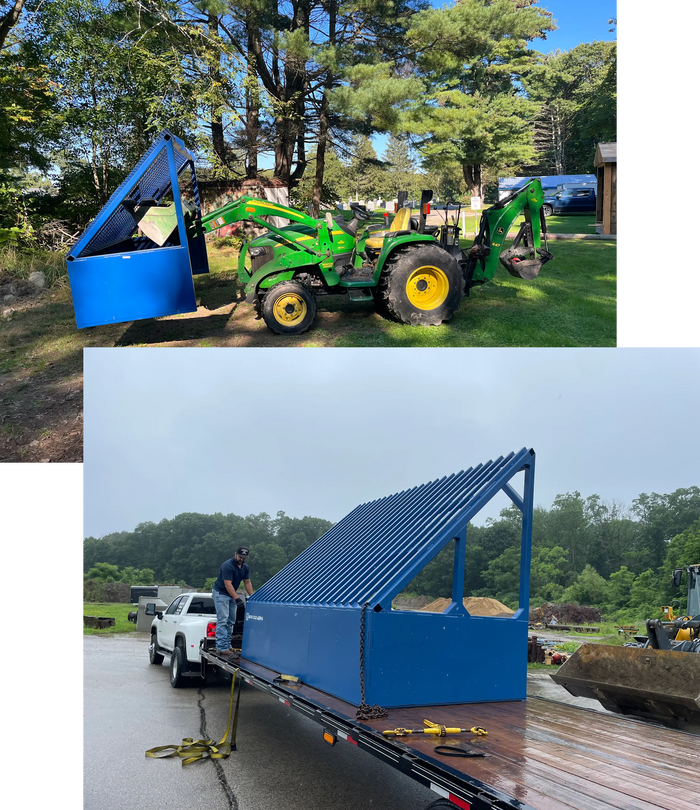

Yes, its design allows easy movement with a loader. At 3300 lbs, it's heavy but manageable on flat or rugged terrain. Customers have added custom fork pockets for forklift transport if needed.
How do I maintain the Papa Rock Screen?
Maintenance is minimal—clean rails after use to prevent buildup, inspect welds periodically, and store in a dry area to avoid rust. No lubrication or complex parts required. For removable screens, rinse with water if clogged.
What is the warranty on the Papa Rock Screen?
All Bear Iron Works products come with our standard warranty covering manufacturing defects. Full details are available at
www.bearironworks.com/pages/warranty. Register your product upon receipt for hassle-free support.
Can the Papa Rock Screen be used for non-soil applications?
Absolutely! Customers use it for separating rocks from manure (for clean agricultural sales), firewood from soil, trash from beach sand, or even in meat processing (contact us for details on unique uses). It's a multi-purpose separator.
How does the Papa compare to competitors?
Our streamlined design offers premium features (like no-tool screen changes and heavy-duty rails) at a fraction of the price—often half the cost of adjustable-rail grizzlies while being more versatile. See our comparison table for details on sizes from Koala to Papa.
What financing options are available?
Finance as low as $267/mo through our partners. Apply in 60 seconds with competing lenders—no impact on your credit for pre-qualification.
Is assembly required?
No, the Rock Screen ships fully assembled and ready to use. It's made to order for quality assurance.
What colors are available, and does it affect performance?
Colors (blue, red, orange) are powder-coated for rust resistance and visibility on job sites. No impact on performance—purely aesthetic and customizable.
Can I return or cancel my order?
Orders can be canceled within 24 hours. After that, all sales are final due to the custom, heavy-duty nature of the product. See our return policy for details on defects.
How do I contact support for questions or issues?
